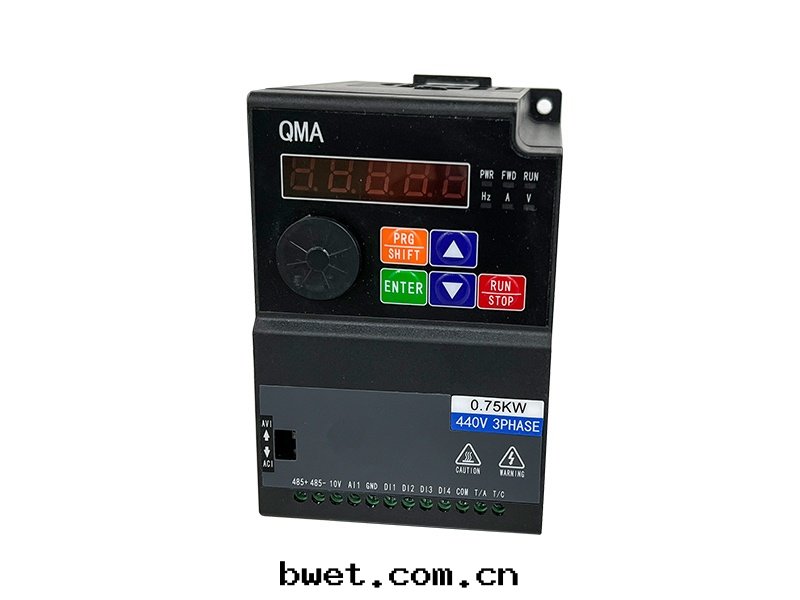

A720 series

Product Features
cptd01High reliabilitycptd04High environmental adaptability

  • Long-life design

  • Strict design and testing production system



  • Independent air duct, easy-to-remove fan design

  • PCBA 100% coating coverage

  • Wide voltage range design

cptd03Excellent user-friendly

  • Using high-quality incremental potentiometer, easy to use

  • Restore user parameters with one click

  • Advanced thermal simulation design, small product size, greatly saving installation space



cptd02Excellent control performance

  • Vector control ensures excellent control performance

  • Different speeds can be matched with different acceleration and deceleration times

  • Using standard Modbus protocol, it is easy to form a centralized control system

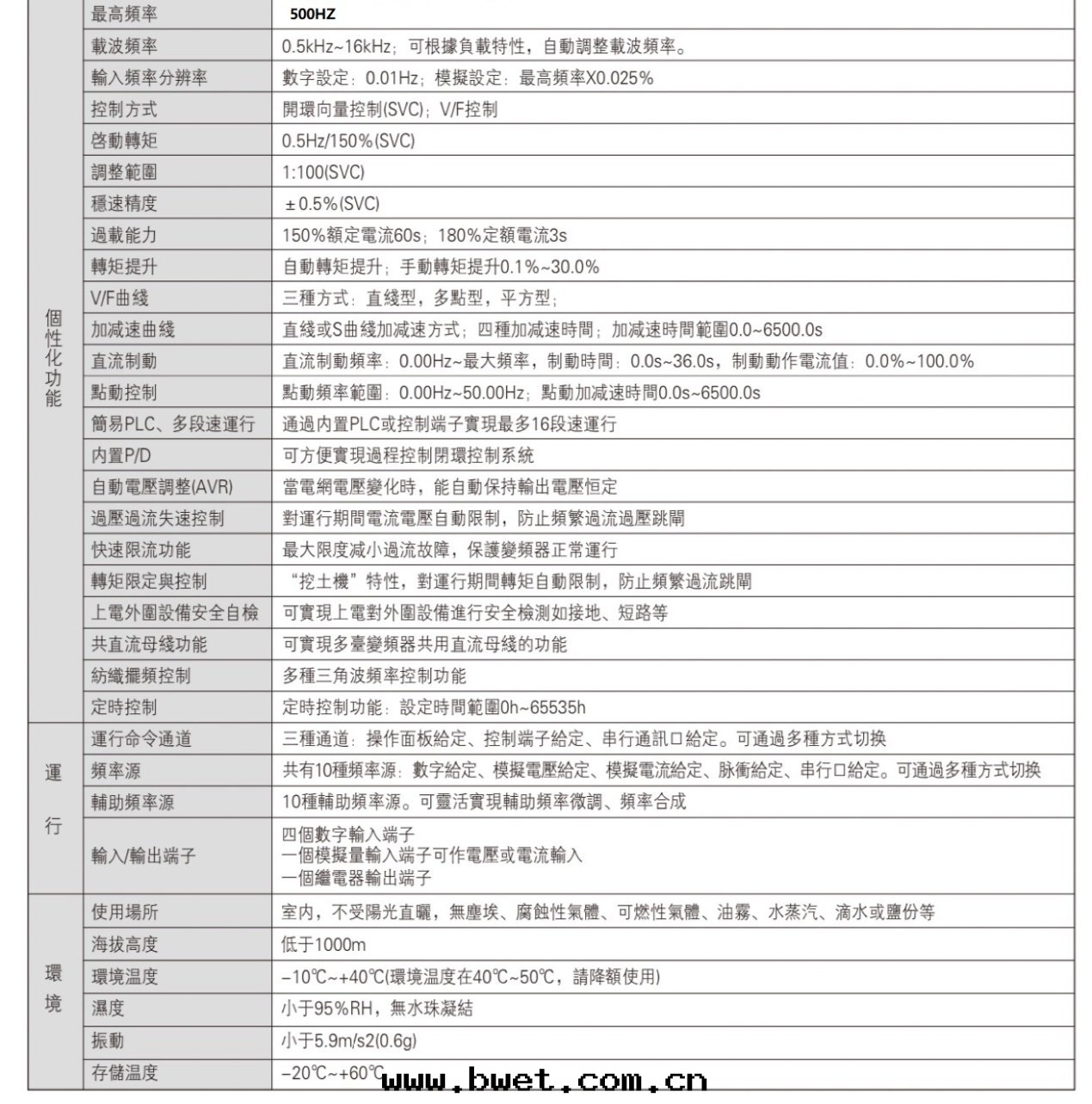

Technical Parameters
迷你變(biàn)頻器A720
Model Table

Model

Input power

Input current (A)

Output current (A)

Rated power

Net weight kg

A720-0R4-23A

1×200-240V50/60Hz

3.5

2.3

0.4

0.9

A720-0R7-23A

1×200-240V50/60Hz

6.7

4.0

0.75

0.9

A720-1R5-23A

1×200-240V50/60Hz

10.9

7.0

1.5

0.9

A720-0R7-43A

3×380-440V50/60Hz

3.5

2.1

0.7

0.9

A720-1R5-43A

3×380-440V50/60Hz

5.9

3.8

1.5

0.9

A720-2R2-43A

3×380-440V50/60Hz

8.5

5.1

2.2

0.9

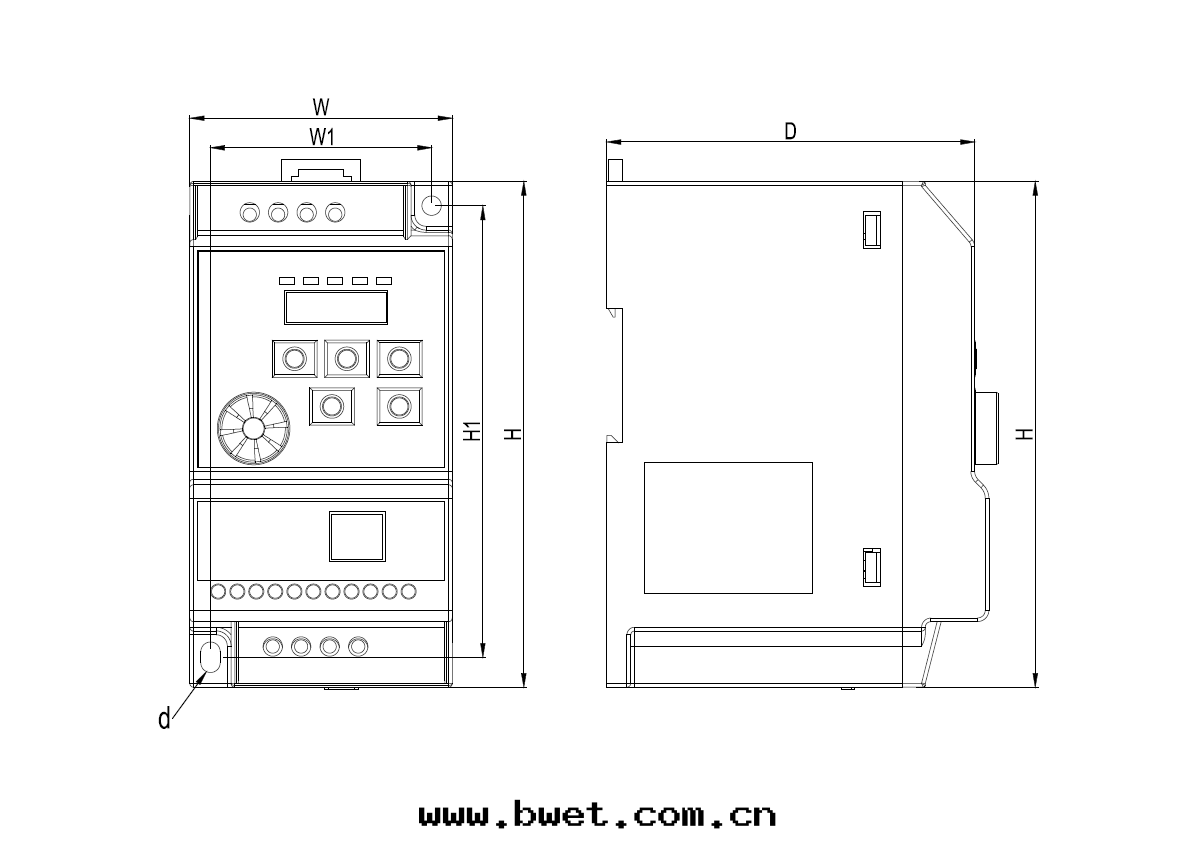

Installation Size

迷你變(biàn)頻器A720

Power

Power

Dimensions mm

1x200-240V

3x380-440V

W

H

D

W1

H1

d

0.4

0.7

80

140

126

67

127

M4

0.75

1.5

1.5

2.2
