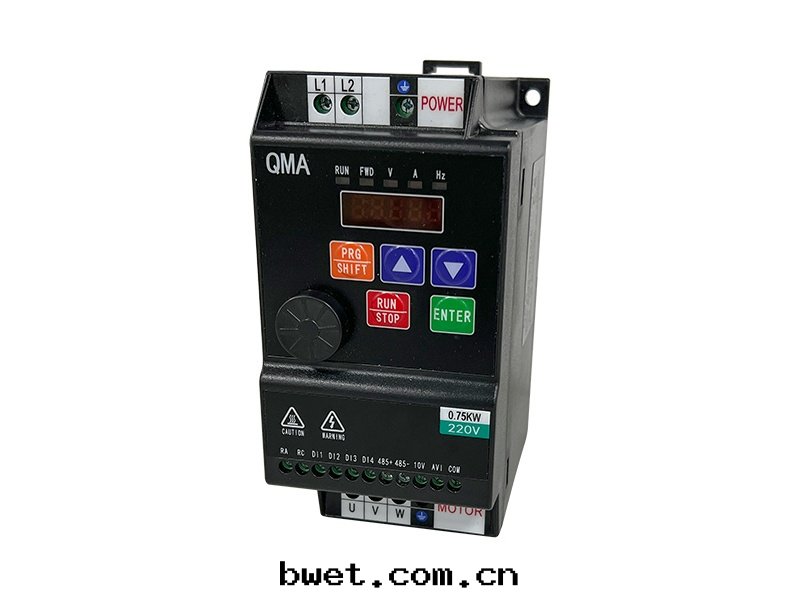

A100 series

A100 inverter is a new generation of high-quality, high-reliability mini inverter from QMA. It is specially tailored for low-power motors. It has the characteristics of small size and easy to use. It can be widely used in food, packaging, winding, assembly line and other industries.
Typical application: Food, packaging, winding, assembly line and other industries
Product Features
cptd01High reliabilitycptd04High environmental adaptability

  • Long-life design

  • Strict design and testing production system


  • Independent air duct, easy-to-remove fan design

  • PCBA 100% coating coverage

  • Wide voltage range design


cptd03Excellent user-friendly

  • Using high-quality incremental potentiometer, easy to use

  • Restore user parameters with one click

  • Advanced thermal simulation design, small product size, greatly saving installation space



cptd02Excellent control performance

  • Vector control ensures excellent control performance

  • Different speeds can be matched with different acceleration and deceleration times

  • Using standard Modbus protocol, it is easy to form a centralized control system

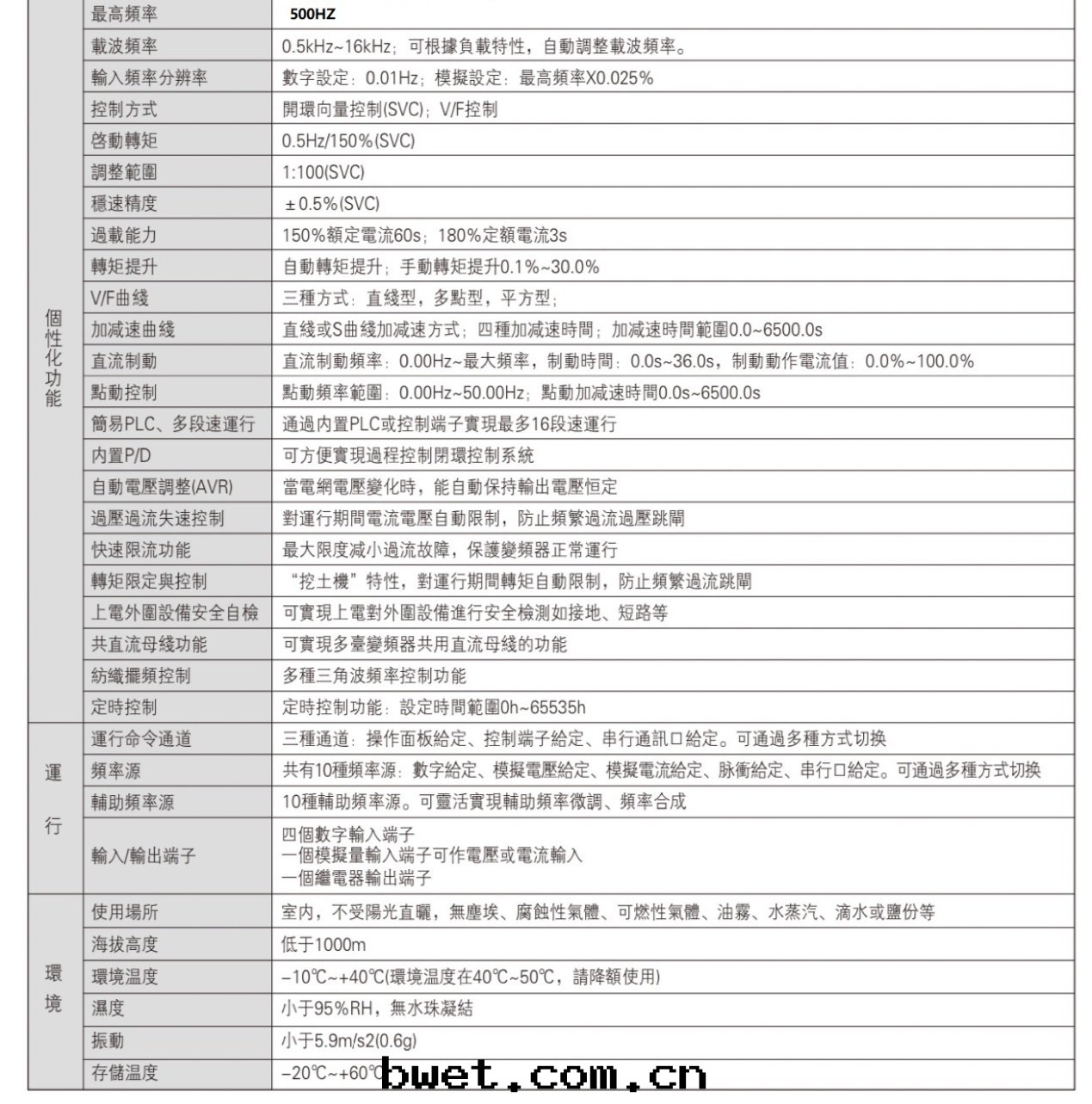

Technical Parameters

迷你變(biàn)頻器A100 (1)

Model Table

Model

Input power

Input current (A)

Output current (A)

Rated power

Net weight

A100-0R4-21A-C

1×200-240V50/60Hz

6.1

2.1

0.4

0.66

A100-0R7-21A-C

1×200-240V50/60Hz

11.6

3.8

0.75

0.66

A100-1R5-21A-C

1×200-240V50/60Hz

18.8

7.0

1.5

0.66

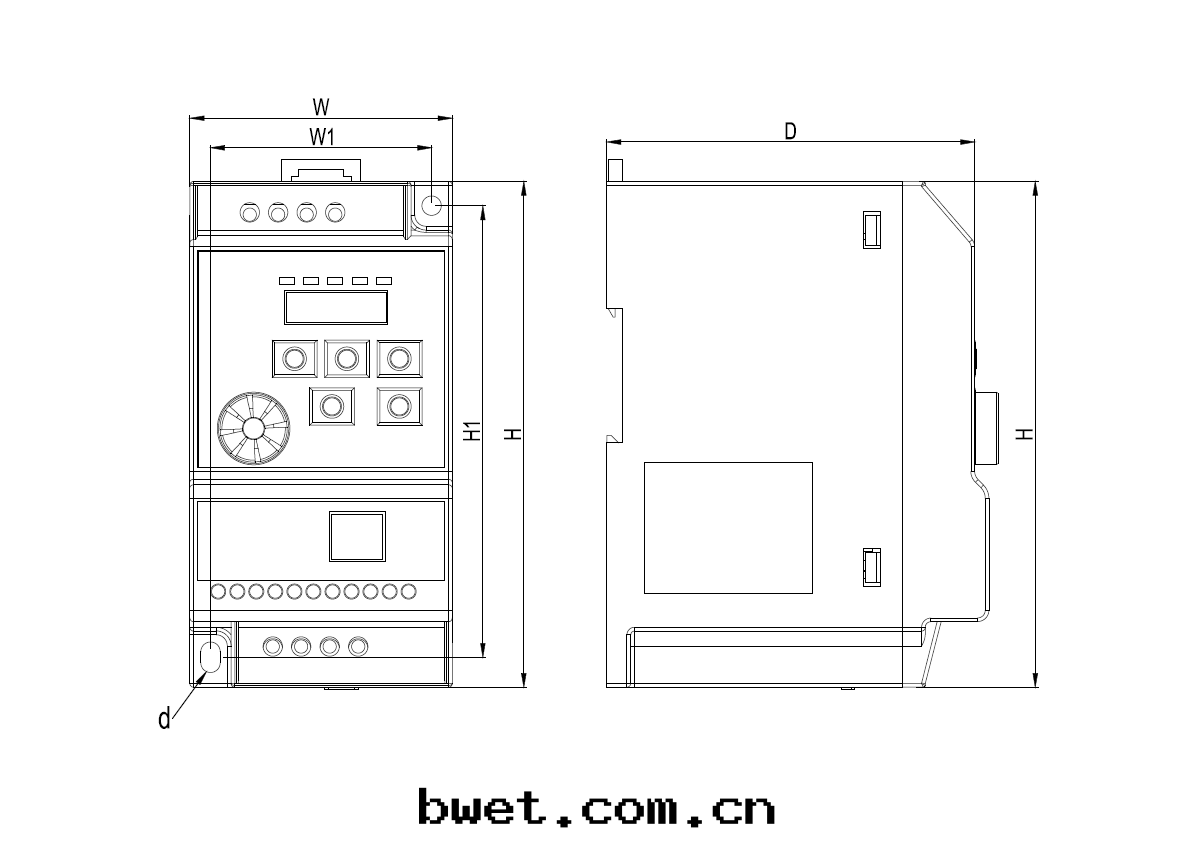

Installation Size

迷你變(biàn)頻器A100 (2)

Power

Dimensions

1x200-240V

W

H

D

W1

H1

d

0.4

70

135

102

59

120.5

M4

0.75

1.5
